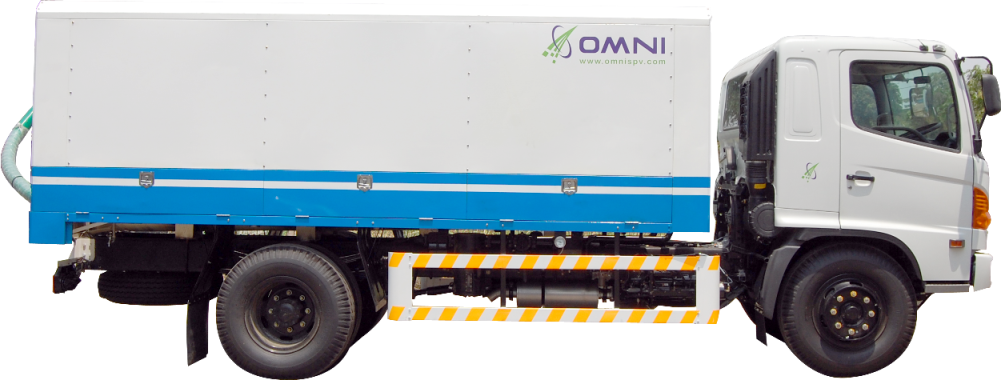

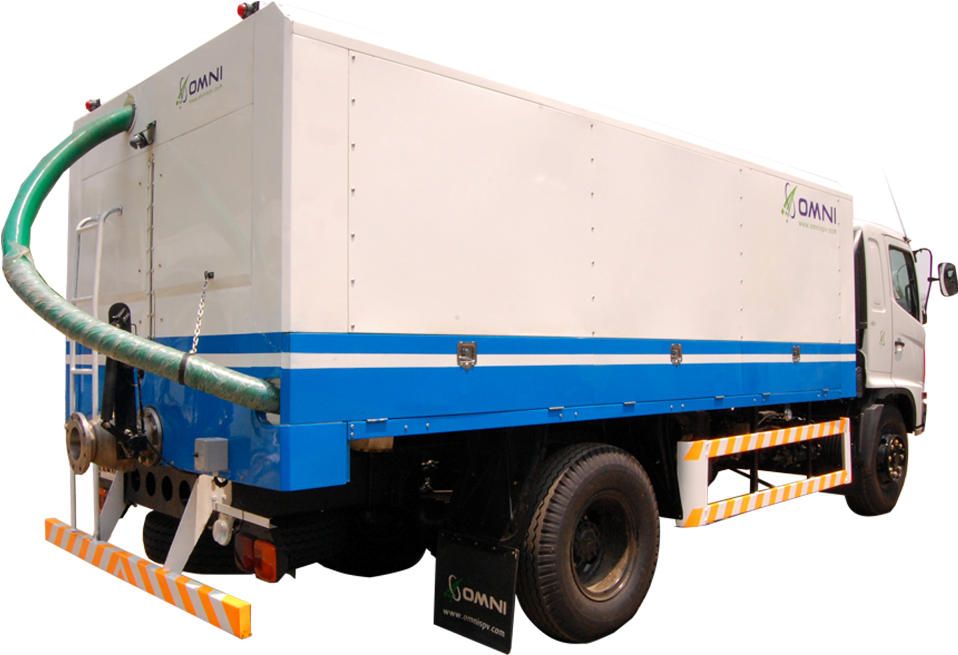

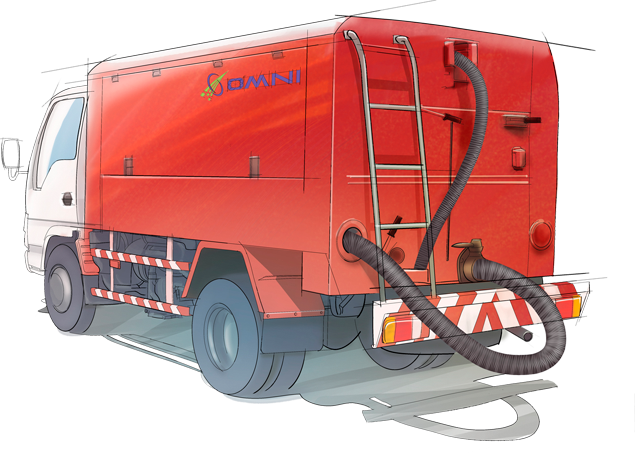

The new Vacuum Vehicle made for what matters.
It’s a special truck, built with precision. Vacuum truck delivers an intelligently simple design but complete function with powerful sucking. All the waste and the silt that is commonly found in many gutter in Indonesia can be sucked till it clean. It integrated with our Jetting tuck for a better result. The best product in the class.
Unique Design.
Unlimited space for comfortable
Its just not like a commonly vacuum vehicle. It has a unique design with an easily decorated cover lining with social messages. Just share your idea, and people can see it clearly.No need to worry about keeping the equipment. It has a wide and neat compartment to keep the accessories neatly and cleanly.
Anything you want.
Just do.
We give the multifunction vehicle to make your work more efficient. Besides to sucking waste, mud or silt in the gutter, this Vacuum Truck can also be used as house domestic waste vacuum.
Endless work. in every way.
Wide range capacity
Enjoy the big capacity of the tank and the powerful sucking; you can work efficiently without back and forth and without wasting your money more and more. It saves cost and time everywhere.

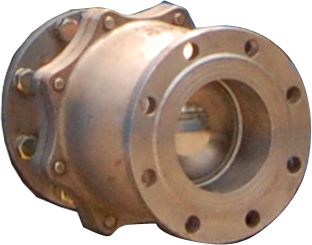

The valves attached are simple on concept relatively easy and inexpensive to manufacture and are able to handle a wide variety of liquids and gasses. The shape of the valve makes it very strong and able to withstand very high pressures. That’s why we don’t need to worry of leakage occurs when the trucks is sucking.
Specification
Truck |
V4000 |
SC8000 |
| Type | 4 stroke diesel engine line, direct injection, | 4 stroke diesel engine line, direct injection, |
| turbo charge intercooler. | turbo charge intercooler. | |
| Maximum power | 130 PS | 235 PS |
| Cylinder capacity | 4.009 cc | 7684 cc |
| Transmission | 5 speed forward gears, 1-5 synchromesh and reverse | 5 speed forward gears, 1-5 synchromesh and reverse |
| gear constantmesh. | gear constantmesh. | |
| Fuel capacity | 100 litre | 200 litre |
| Electric system | (12V x 65 Ah) x 2 | (12V x 65 Ah) x 2 |
Container Tank |
||
| Volume | 4000 litre | 7800 litre |
| Material | Steel | Steel |
| Plate thickness | 4 mm | 5 mm |
| Man Hole | 420 x 290 mm | Ø 450 mm |
| Tank filling time | ≤ 8 minute | ≤ 10 minute |
Vacuum Pump |
||
| Output | 2150 litre/minute | 2750 litre/minute |
| Pump switch | DN150 ball valve, electric driven | DN150 ball valve, electric driven |
| Level of noise | ≤ 60 dB | ≤ 65 dB |
| Vacuum capabilities | Sludge and water | Sludge and water |
Gas Separator |
||
| Separating gas – oil | To separate oil from gas in the outlet pipe, to make | To separate oil from gas in the outlet pipe, to make |
| sure there’s no dangerous gases, to ensure minimum | sure there’s no dangerous gases, to ensure minimum | |
| consumption of lubricants in the vacuum pump. | consumption of lubricants in the vacuum pump. | |
| Separating gas – water | To eliminate moisture and waste water in vacuum | To eliminate moisture and waste water in vacuum |
| pumps, and protect vacuum pumps, to ensure the | pumps, and protect vacuum pumps, to ensure the | |
| durability of the vacuum pump. | durability of the vacuum pump. |
Safety System |
||
| Anti Over-flow device | Anti overflow floating type device used to prevent fluid | Anti overflow floating type device used to prevent fluid |
| in the tank overflowed to the air pipe vacuum. | in the tank overflowed to the air pipe vacuum. | |
| Safety valve | 60 Kpa | 60 Kpa |
Control Systems and Measuring Tools |
||
| Pressure measuring devices | Vacuum pressure measuring device | Vacuum pressure measuring device |
| Control systems | 4 lanes controller controls | 4 lanes controller controls |
Accessories |
||
| Hose diameter | Ø 100 mm | Ø 100 mm |
| Hose length | 6 M | 6 M |
| Work stairs width | 340 mm | 340 mm |
